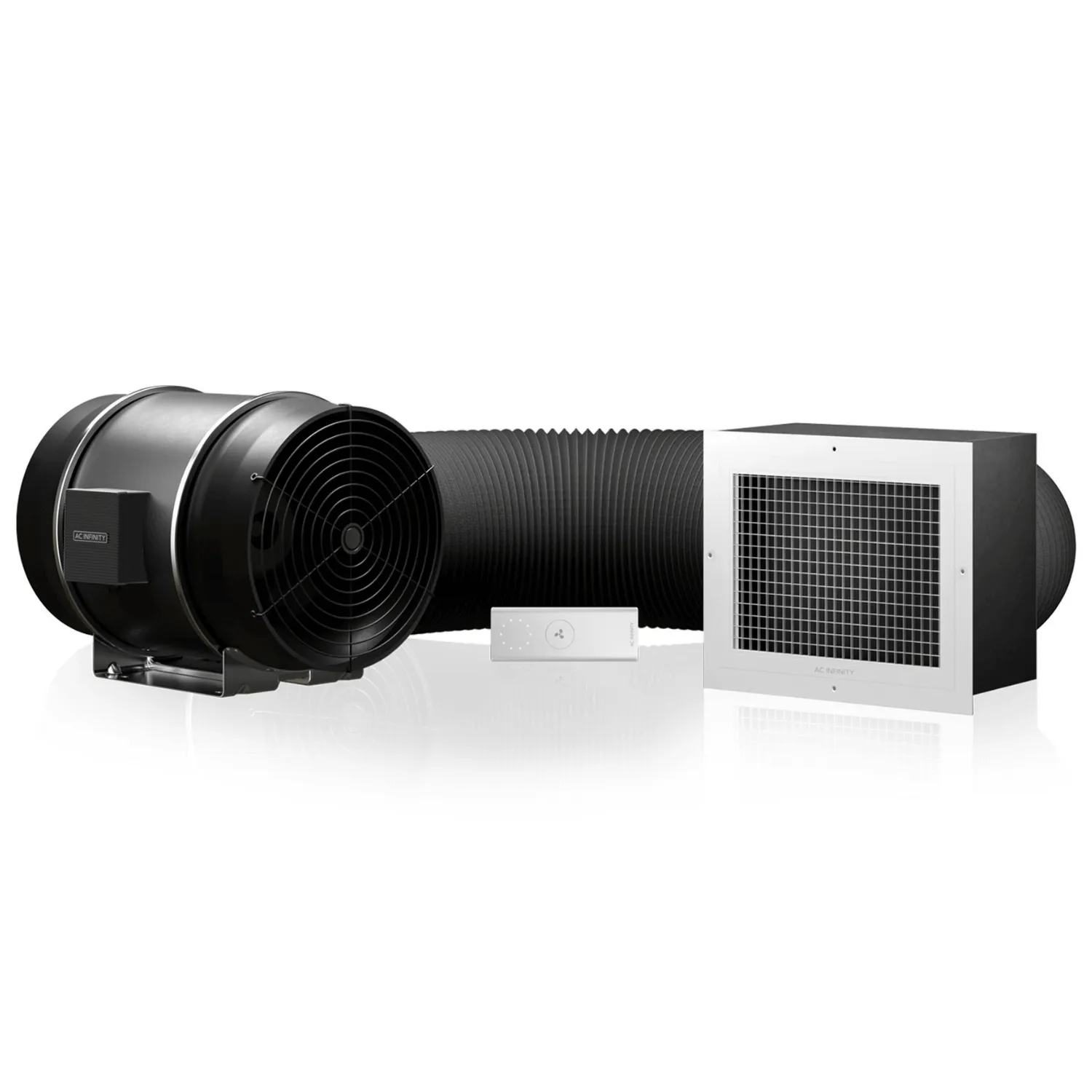

Name: AC Infinity CLOUDWAY S10, Whole House EC Fan, 1200 CFM, Energy Efficient with Wireless Controller
SKU: 37909

Description

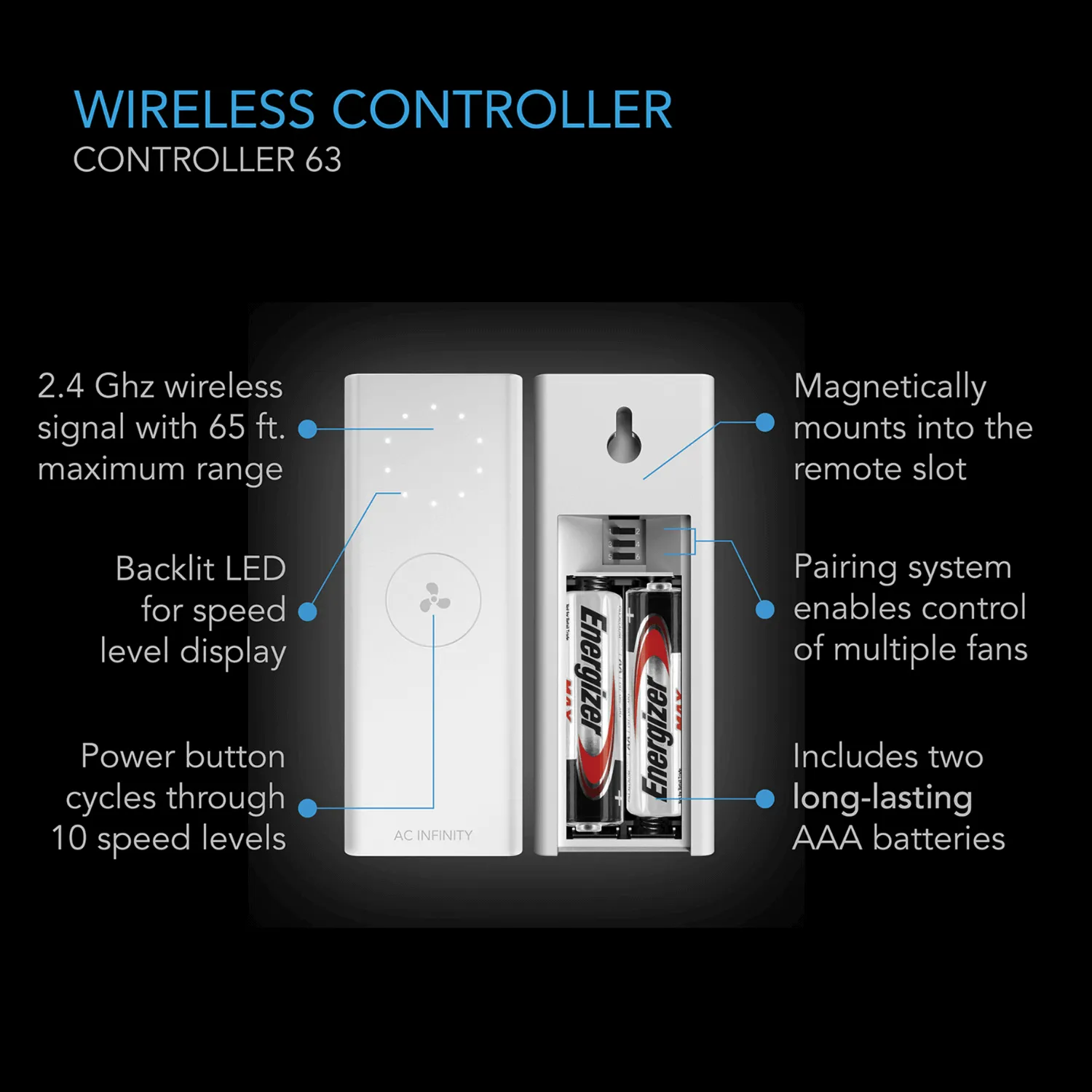

Whole House Attic Fan: This fan is designed to cool and ventilate entire homes by exhausting hot air from indoor spaces. It utilizes a 10-speed wireless controller with backup memory, remotely adjusting fan speed and optimizing airflow. The system features 2-door shutters with a damper that blocks attic air from entering living spaces when the fan is not in use.

Key Specifications: The duct size is 10 inches. The dimensions are 9.8 x 15.1 x 11.3 inches. It delivers an airflow of 1201 CFM with a noise level of 48 dBA. It incorporates dual ball bearings for smooth operation.

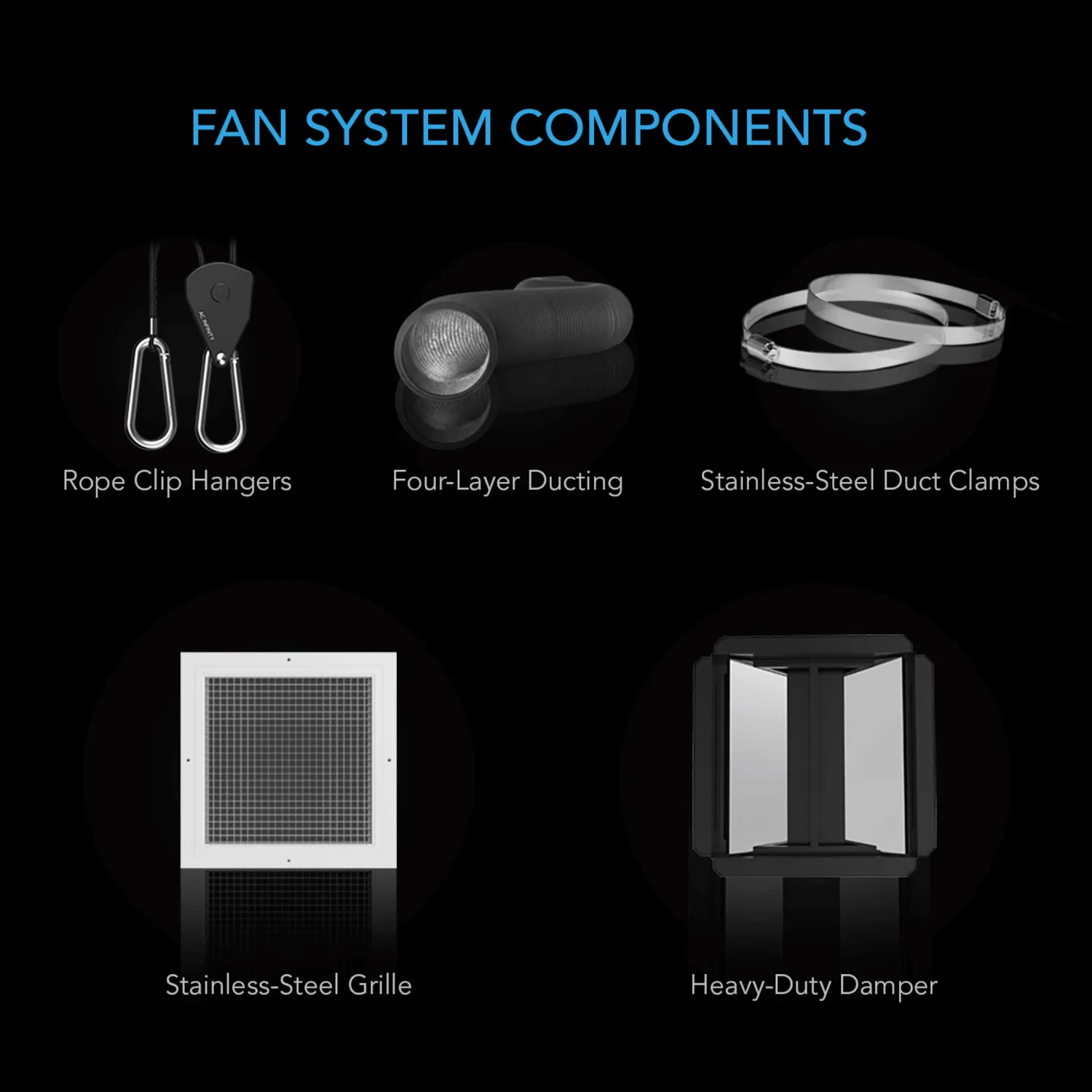

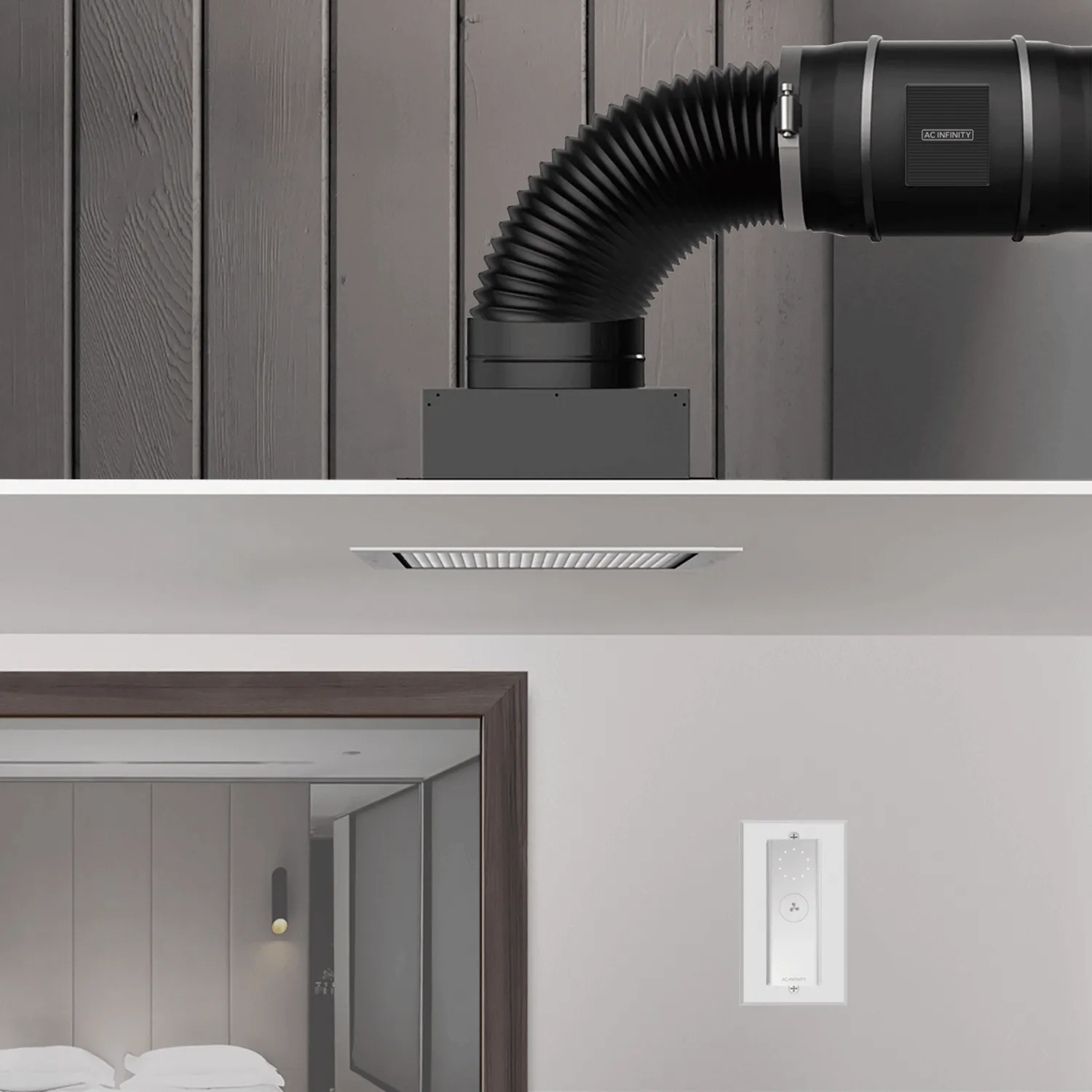

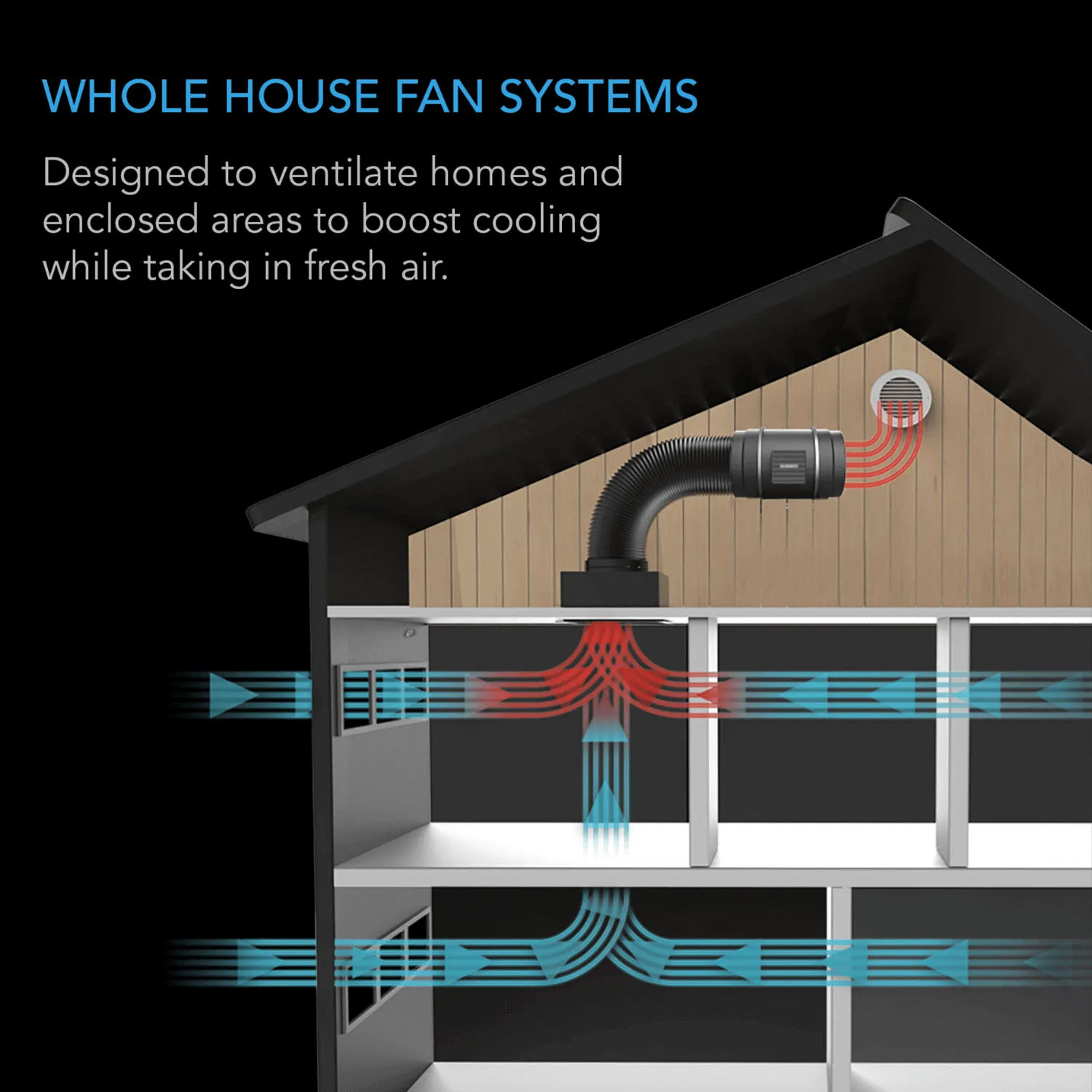

Product Description: This whole house fan system exhausts hot air from indoor spaces while creating passive intake to pull in fresh air. A wireless fan remote controls each attic fan that can adjust the fan speed in up to 10 levels. Optimizing cooling and noise levels from anywhere in your home is easy and convenient. The fan uses an EC motor that allows it to run efficiently and quietly. This kit includes 4-layer ducting, stainless steel duct clamps and grille, along with a 2-door shutter.

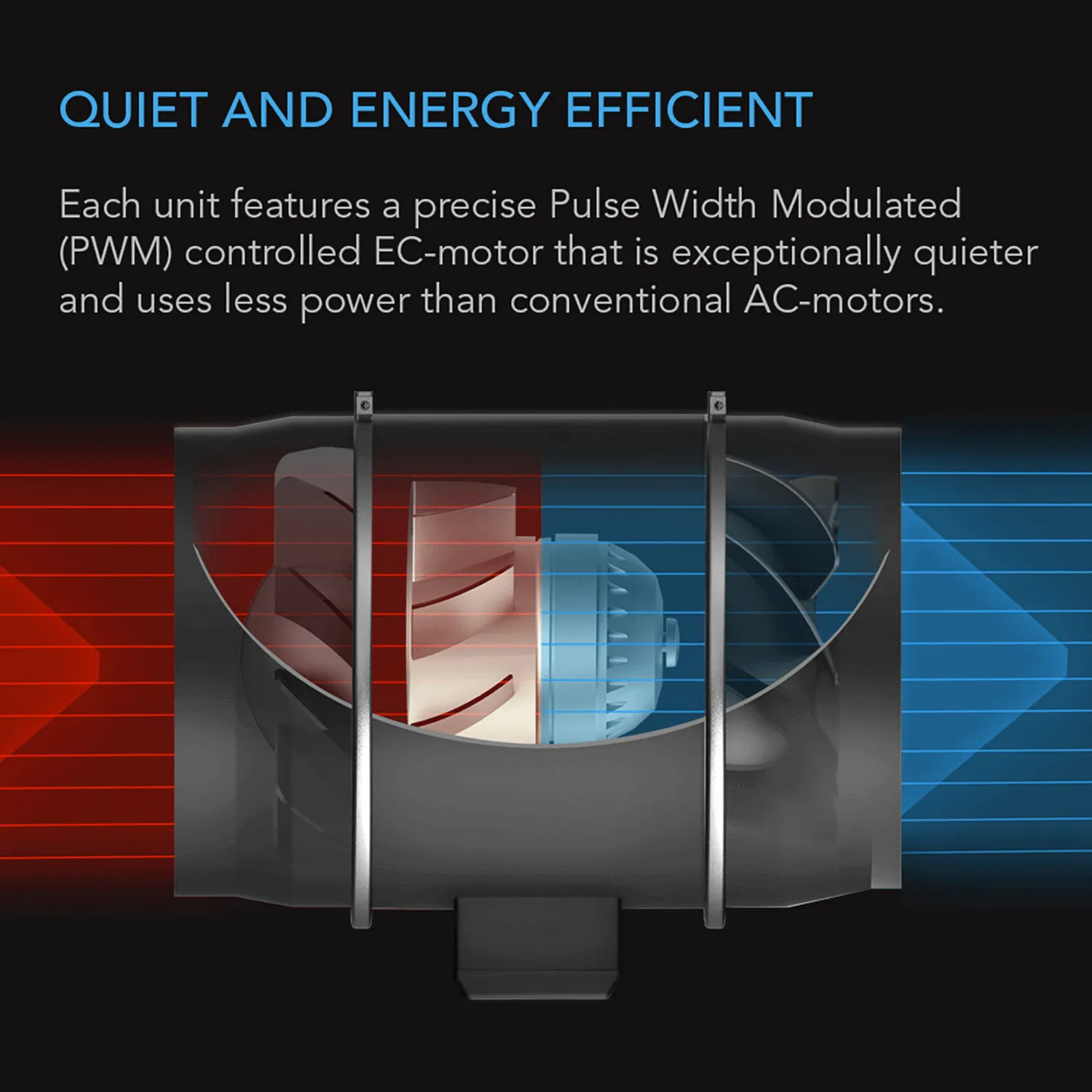

Next-Gen EC Motor: Using cutting-edge technology, this fan features an Electronically Commutated (EC) motor that is digitally controlled with precise electronic pulses. PWM technology ensures quiet operation while allowing speed control from 0 to 100%, without generating excess heat or noise. Furthermore, EC motors prove to be cost-effective in the long run with double lifespan and 40% more energy efficiency than AC motors.

Efficient Performance: This attic fan offers efficient performance with a continuous run lifespan of 50,000 hours, facilitated by dual ball bearings that allow omnidirectional mounting. An IP-44 rating ensures resistance against dust and moisture, allowing the fan to perform in most humid environments. Lastly, the insulated damper with gravity-fed shutters closes the opening when the fan is not in use, keeping attic air from entering your home.

Specifications

Product Identification

Manufacturer: AC Infinity Inc.

Product Name: CLOUDWAY S10

Product Model: AC-CRS10

UPC Code: 819137023031

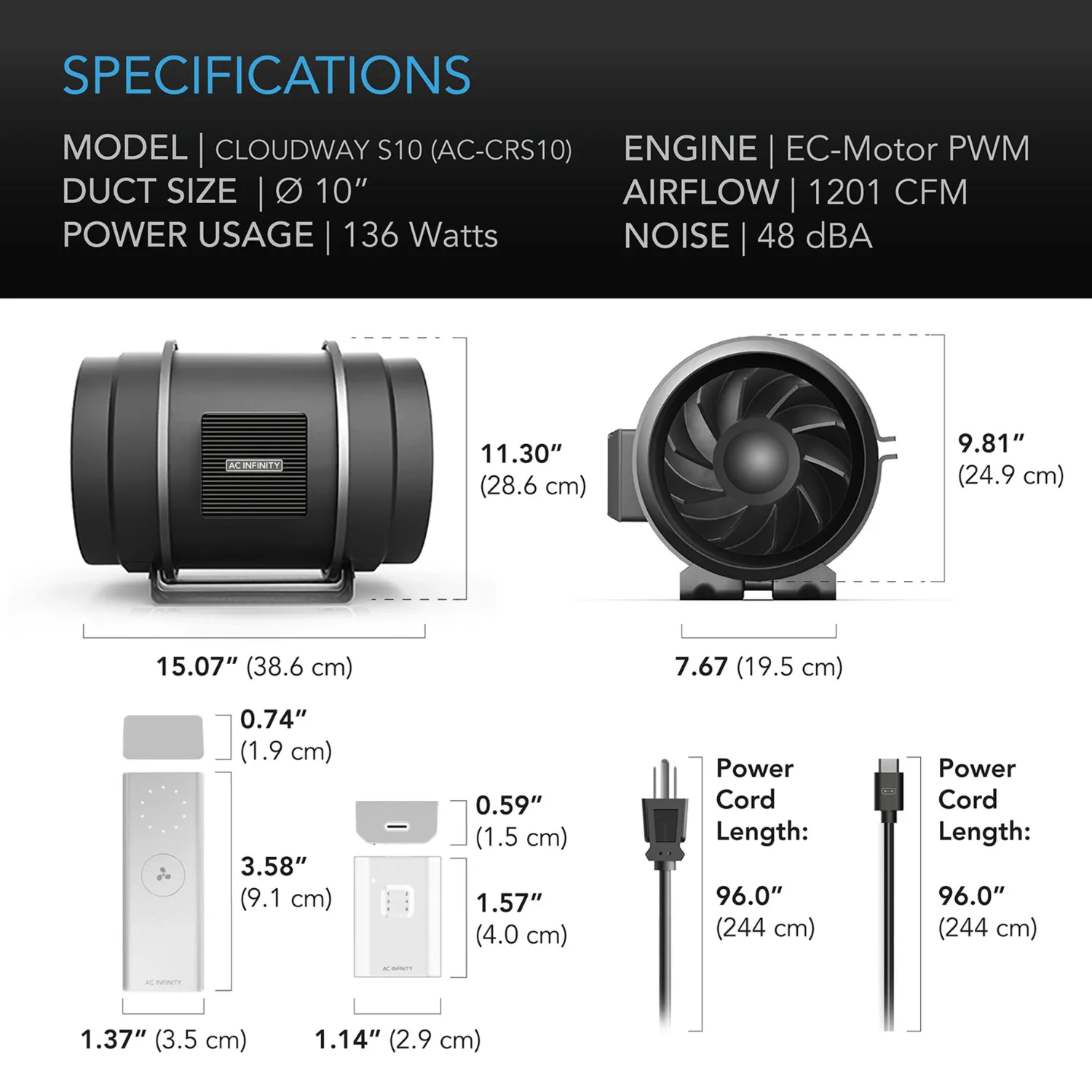

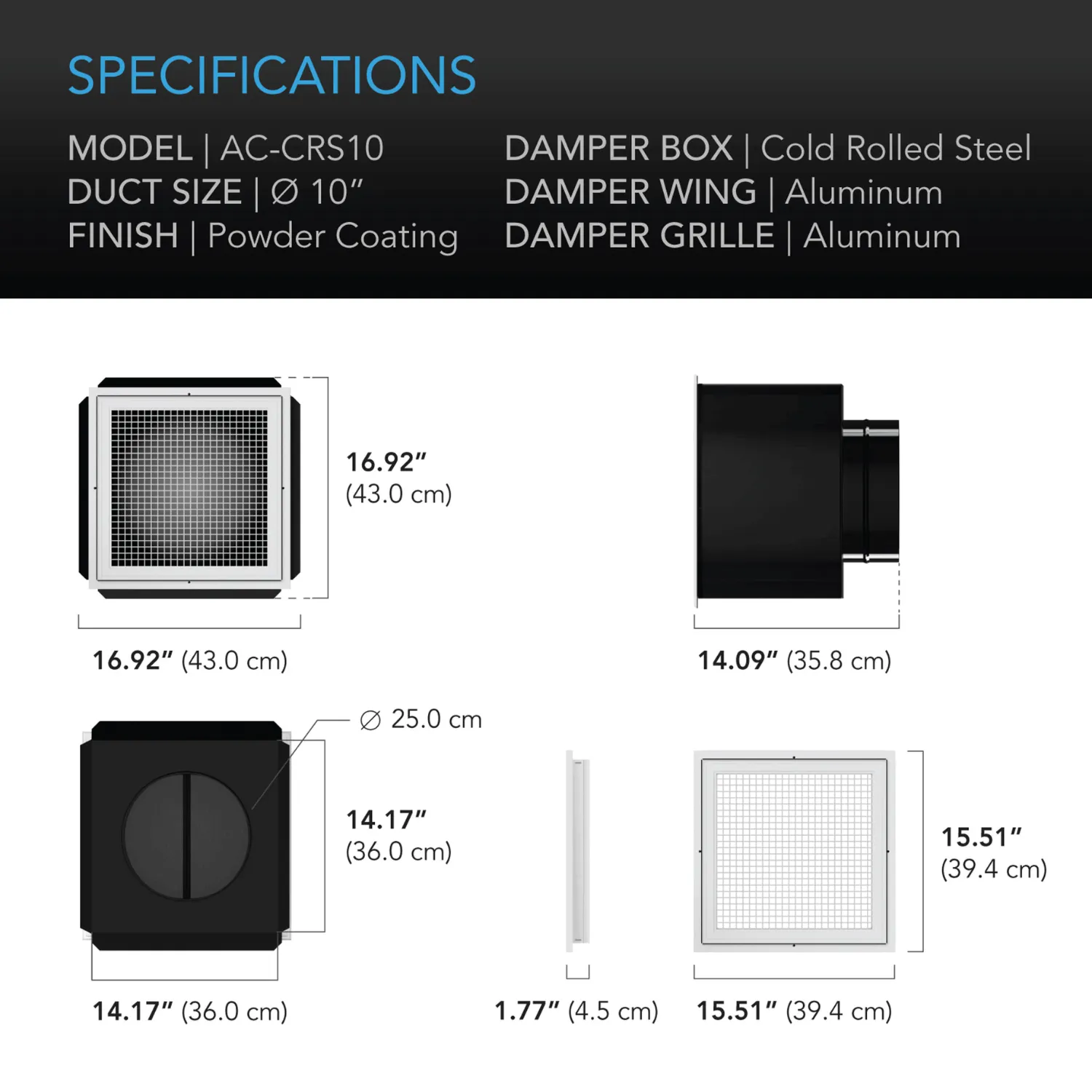

Product and Mounting Dimensions - Fan Unit

Duct Size: 10 inches

Duct Tube Length: 5 feet

Total Dimensions: 9.81 x 15.07 x 11.30 inches (24.9 x 38.6 x 28.6 cm)

Mounting Hole-To-Hole Distance: 5.90 x 5.90 inches (15.0 x 15.0 cm)

Screw Hole Size: Ø 0.472 inches (Ø 1.2 cm)

Cord Length to Controller: 240 inches (20 feet)

Cord Length to Plug: 96 inches (8 feet)

Product and Mounting Dimensions - Controller

Controller Dimensions: 3.59 x 1.37 x 0.75 inches (9.1 x 3.5 x 1.9 cm)

Receiver Dimensions: 1.14 x 1.57 x 0.59 inches (2.9 x 4.0 x 1.5 cm)

Mounting Hole Size: Ø 0.25 inches (Ø 6.5 mm)

Product Performance and Technical Specs

Total Airflow: 1201 CFM

Total Noise: 48 dBA

Static Pressure: 352 Pa

Voltage: 100-240V AC

Frequency: 50/60Hz

Max Power Draw: 250 W

Average Power Usage: 136 W

Current: 2.7 A

Power Connector Type: US Plug (NEMA 1-15 Type-A)

Wall Adapter Input: 100 to 120V AC

Operating Humidity: 35 to 85% RH

Operating Temperature: 32 to 140°F

Ingress Protection: IP 44

Fan Bearings: Dual Ball

Mounting Positions: Horizontal or Vertical

Life Expectancy: 67,000 Hours

Fan Quality Approvals: CE, RoHS

Data Sheets

Download the product manual:

Download the CE Certification:

Download the RoHS Certification:
