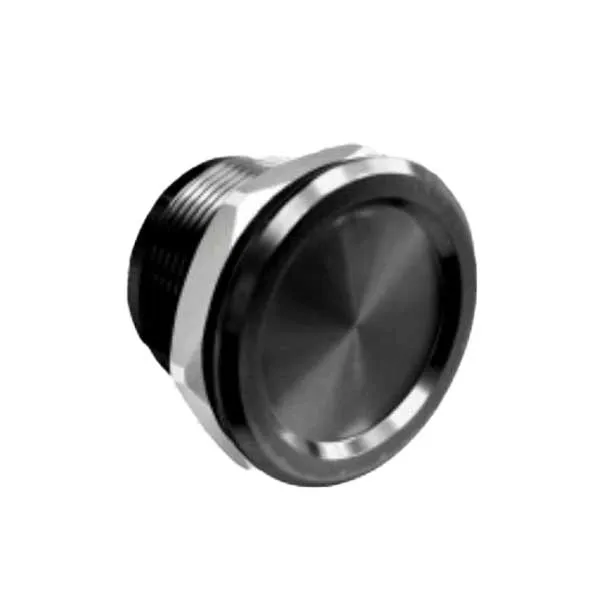

Rosslare's PX-13 is a general purpose high-performance 22-mm panel-mounted normally open (N.O) piezoelectric switch suited for long-life and rugged-use applications. Made from AL6061 aluminum alloy material with Type II anodization. The PX-13 requires no external power source to operate; it is anti-vandal, water-resistant, and weather-resistant, and can be operated with fingers, gloves, and through elastomeric overlays. The piezoelectric switches are compatible with Rosslare’s controllers, security systems, and many third party systems.
Features
- Easy to install and use
- Supports a wide range of switch voltages from 0 to 30 VDC
- Piezoelectric technology allows sensing actuation within a solid metal enclosure, making the devices rugged and waterproof; meets IP68
- Fully-potted design prevents penetration of dirt, dust and water
- Require no operating power, capable of actuating a dry contact input
- SMT designed electronics for higher quality, superior performance, and reduced cost
- Compatible with Rosslare’s access controllers as a REX or a system input (alarm or event)
- No polarity considerations for the switch
- Meets RoHS requirements
Specifications:
| Switch Voltage: | 0 VDC to 30 V AC/DC |
| Switch Current: | 1 A (max) |
| Wire Leads: | 2 x 24 AWG 280 mm (11.0 in.) wires |
2-Wire Interface: |
No polarity |
| Button Life: | Up to 20 million cycles |
| Impulse Time: | >50 ms (on actuation) |
| Dimensions: |
Height: 0.8 in. Diameter: 1.2 in. |
| Standard Thread: | 0.9 in. |
| Product Warranty: | Lifetime Warranty |
| Device Certifications: | IP68 |
