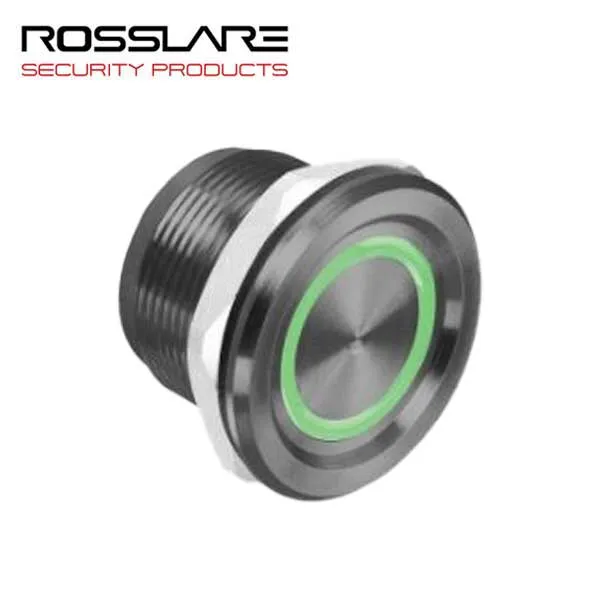

Rosslare's PX34 are a general purpose high performance 22-mm panel-mounted, normally open (N.O.) Piezoelectric toggle switches suited for long-life and rugged use applications. They are made from aluminum alloy (AL6061) with type II Anodize. The PX-34 is anti-vandal, water and weather resistant and can be operated with fingers, gloves and through elastomeric overlays. PX-34 series have BI-Colored LED ring with two external control wires providing user feedback for various applications, such as door exit, elevator panels and industrial equipment control. The Piezoelectric Toggle switches are compatible with Rosslare’s controllers security systems and many third-party systems.
Features
- Easy to install and use
- Light indicator switch colors between red and green when the button is pressed
- Wide range of input voltage from 5 to 30 VDC
- Piezoelectric technology can sense actuation within a solid metal enclosure
- Low temperature operation down to -40°C
- Meets IP68, fully potted design resists penetration of dirt and dust and water
- SMT designed electronics for higher quality, superior performance, and reduced cost
- Compatible with Rosslare’s access controllers as a REX or a system input (Alarm or Event)
- No polarity considerations for toggle switch wiring
Specifications:
| Power Supply Voltage: | 12 VDC |
| Voltage: | 5 VDC to 30 VDC (max) |
| Input Current: | < 1A |
| Contact Resistance: | <100 Ohm |
Wire Leads (Switch Output): |
2 x 24 AWG 280 mm (11.02 in.) length (UL 1569) yellow wires |
| Red LED Operation: | Ground brown wire to activate red LED |
| Green LED Operation: | Ground green wire to activate green LED |
| Button Life: |
Up to one billion cycles |
| Impulse Time: | >50 ms (on actuation) |
| Dimensions: | Height: 0.76 in. Diameter: 1.16 in. |
| Standard Thread: | 0.86 in. |
| Product Warranty: | Lifetime Warranty |
| Device Certifications: | IP68 |
